Intellij에 Spring MVC 5 설치하기

조영래 2021. 9. 28. 14:53

Intellij 에 Spring MVC 5 , Log4j2, Mybatis 를 동시에 설치

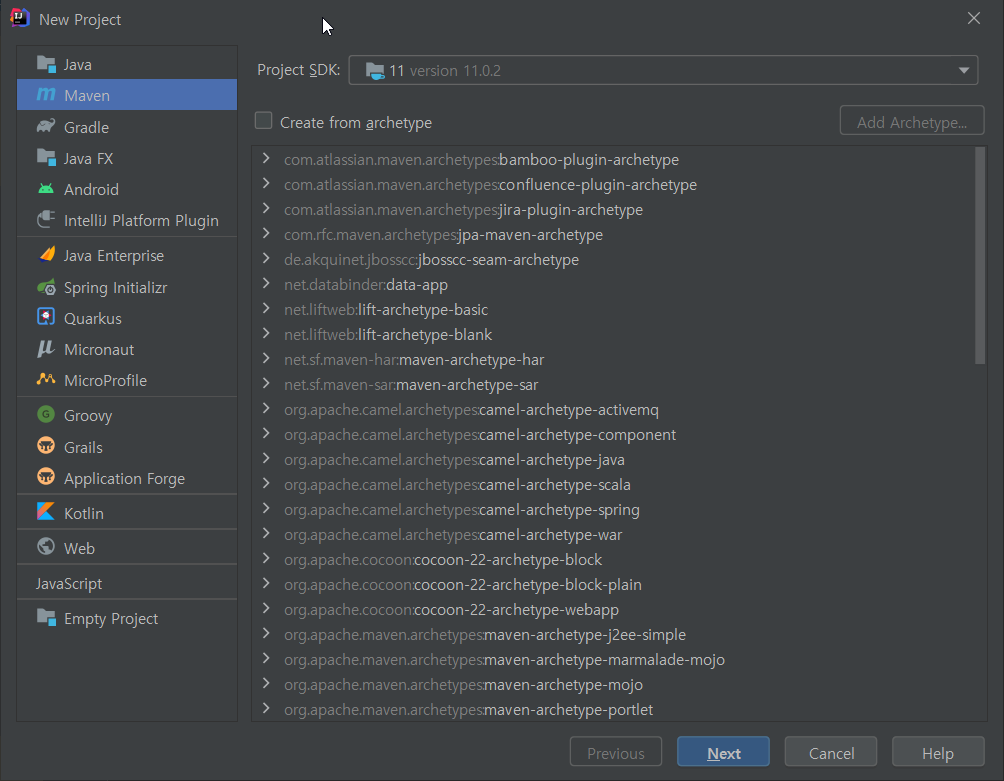

1. A. File - New - Project 를 선택 한 후 Maven을 선택 후 Next 를 클릭한다

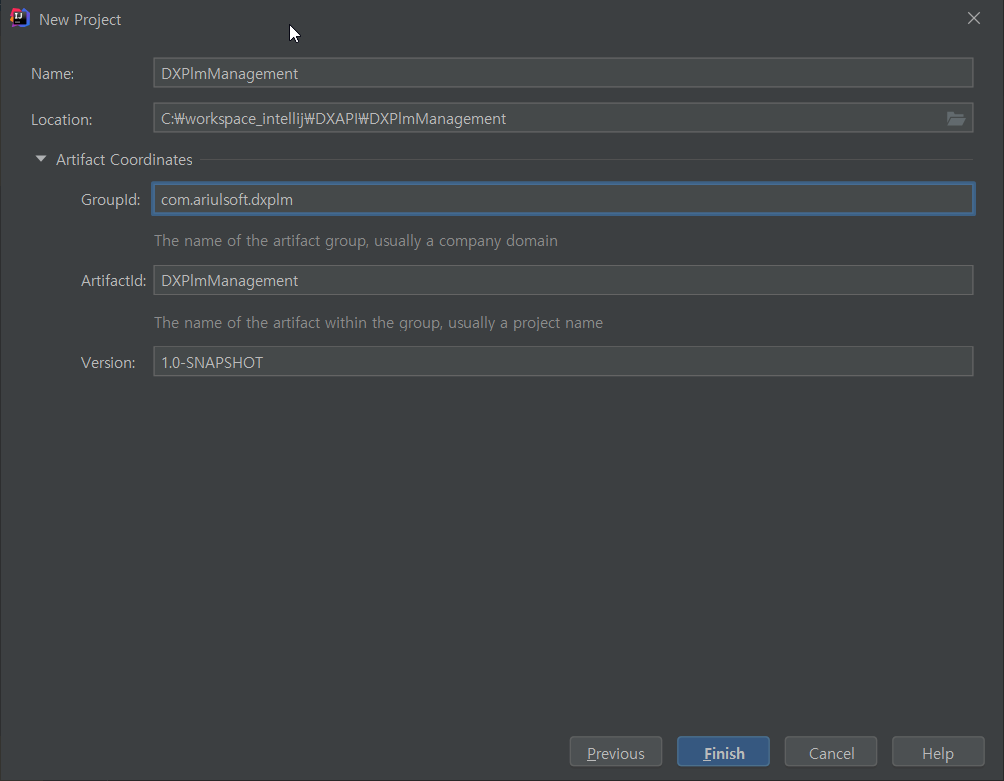

2. 필요한 정보를 입력 후 Finish를 클릭한다

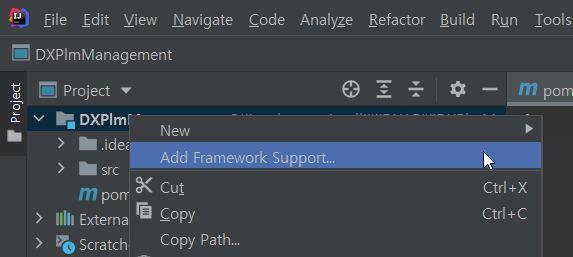

3. 프로젝트를 선택 후 오른쪽 마우스를 클릭하여 Add Framework Support를 선택한다

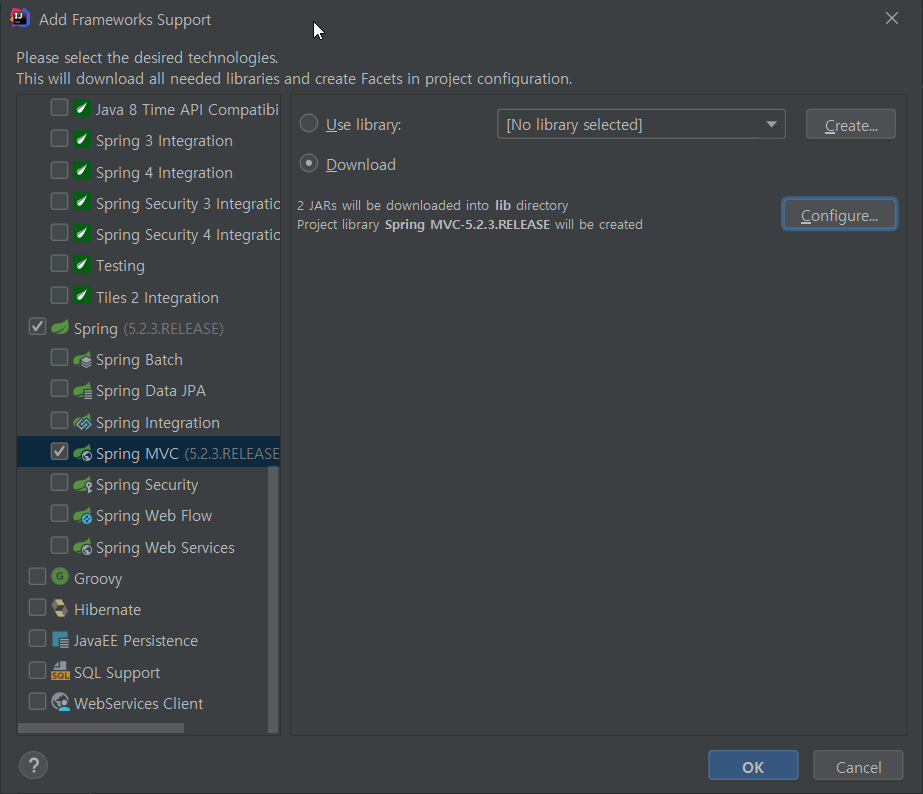

4. Spring - Spring MVC 를 체크 후 OK를 클릭한다


5. 필요 라이브러리를 받기 위하여 pom.xml을 아래 내용으로 수정

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.airulsoft.dxplm</groupId>
    <artifactId>DXPlmManagement</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>11</maven.compiler.source>
        <maven.compiler.target>11</maven.compiler.target>

        <slf4j.version>1.7.25</slf4j.version>
        <log4j.version>2.14.1</log4j.version>
        <javax.servlet-api-version>4.0.1</javax.servlet-api-version>
        <javax.servlet.jsp-api-version>2.3.3</javax.servlet.jsp-api-version>
        <javax.servlet.jsp.jstl-api-version>1.2.2</javax.servlet.jsp.jstl-api-version>
        <taglibs-standard-impl-version>1.2.5</taglibs-standard-impl-version>
    </properties>

    <dependencies>
        <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.6</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>2.0.6</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.2.3.RELEASE</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.apache.commons/commons-dbcp2 -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-dbcp2</artifactId>
            <version>2.9.0</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/com.microsoft.sqlserver/mssql-jdbc -->
        <dependency>
            <groupId>com.microsoft.sqlserver</groupId>
            <artifactId>mssql-jdbc</artifactId>
            <version>8.4.1.jre11</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/com.google.code.gson/gson -->
        <dependency>
            <groupId>com.google.code.gson</groupId>
            <artifactId>gson</artifactId>
            <version>2.8.6</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/commons-codec/commons-codec -->
        <dependency>
            <groupId>commons-codec</groupId>
            <artifactId>commons-codec</artifactId>
            <version>1.15</version>
        </dependency>

        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>${slf4j.version}</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>jcl-over-slf4j</artifactId>
            <version>${slf4j.version}</version>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-api</artifactId>
            <version>${log4j.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-core</artifactId>
            <version>${log4j.version}</version>
        </dependency>
        <!--For and sfl4j Bridge maintenance-->
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-slf4j-impl</artifactId>
            <version>${log4j.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-web</artifactId>
            <version>${log4j.version}</version>
            <scope>runtime</scope>
        </dependency>

        <!-- https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>${javax.servlet-api-version}</version>
            <scope>provided</scope>
        </dependency>

        <!-- https://mvnrepository.com/artifact/javax.servlet.jsp/javax.servlet.jsp-api -->
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>javax.servlet.jsp-api</artifactId>
            <version>${javax.servlet.jsp-api-version}</version>
            <scope>provided</scope>
        </dependency>

        <!-- https://mvnrepository.com/artifact/javax.servlet.jsp.jstl/javax.servlet.jsp.jstl-api -->
        <dependency>
            <groupId>javax.servlet.jsp.jstl</groupId>
            <artifactId>javax.servlet.jsp.jstl-api</artifactId>
            <version>${javax.servlet.jsp.jstl-api-version}</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.apache.taglibs/taglibs-standard-impl -->
        <dependency>
            <groupId>org.apache.taglibs</groupId>
            <artifactId>taglibs-standard-impl</artifactId>
            <version>${taglibs-standard-impl-version}</version>
        </dependency>


    </dependencies>

</project>

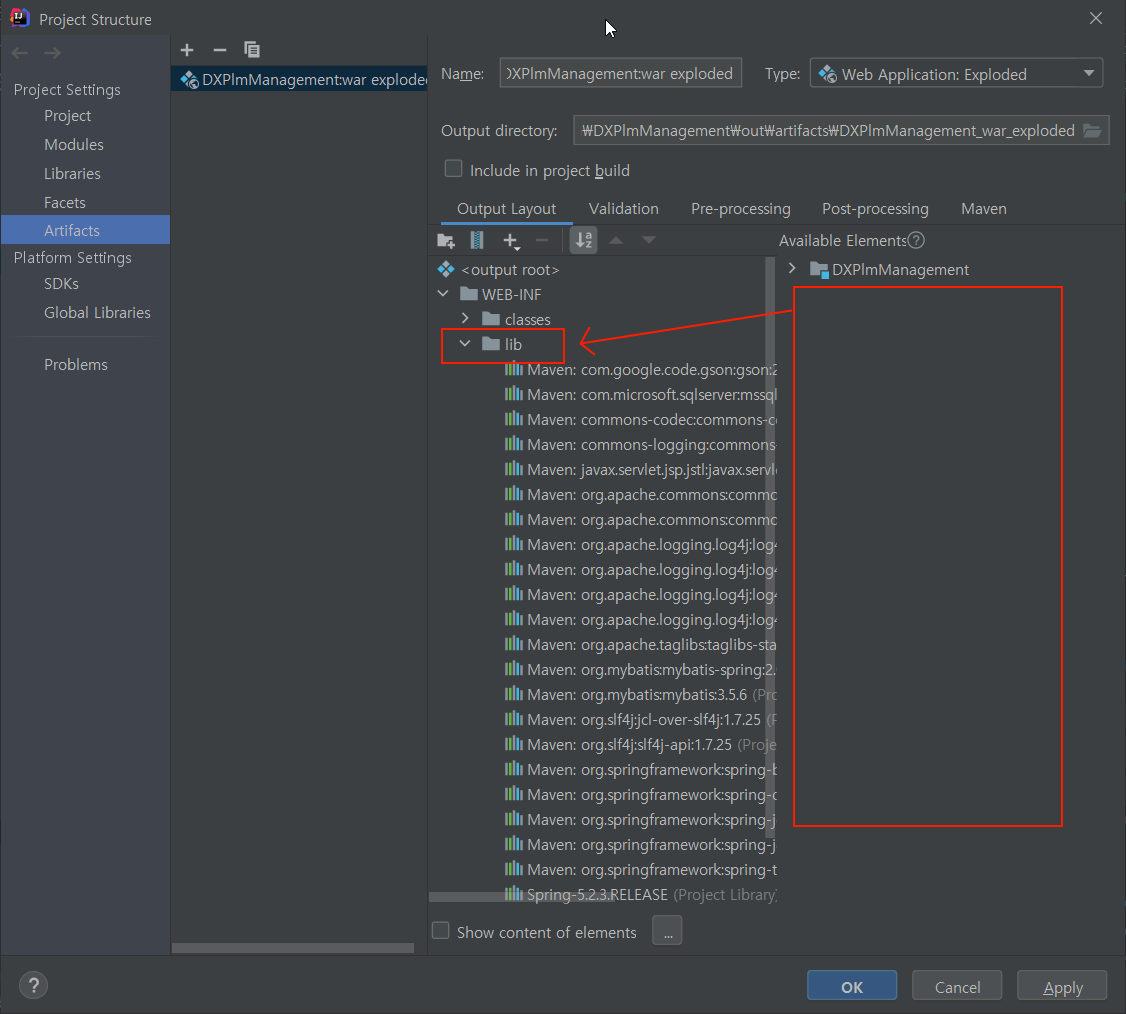

6. File - Project Structure 를 선택한 후 Arifacts 항목에서 Available Elements에 있는 항목들을 output root 으로 lib 폴더에 드래그앤드롭을 하여 이동한 후 OK를 클릭한다. (lib 폴더는 처음에 존재하지 않으므로 생성한다)


7. /WEB-INF/web.xml 을 아래의 내용으로 변경

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>/WEB-INF/applicationContext.xml</param-value>
    </context-param>

    <!-- Log record -->
    <context-param>
        <param-name>log4jConfiguration</param-name>
        <param-value>/WEB-INF/log4j2.xml</param-value>
    </context-param>

    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
    <listener>
        <listener-class>com.ariulsoft.dxplm.dxplmmanagement.listener.ContextLoaderListener</listener-class>
    </listener>

    <servlet>
        <servlet-name>dispatcher</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>/WEB-INF/dispatcher-servlet.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>dispatcher</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
</web-app>



8. /WEB-INF/applicationContext.xml 을 아래 내용으로 수정
- Datasource 및 Mybatis 설정이 적용

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">

    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource" />
        <property name="mapperLocations" value="classpath*:config/mappers/*.xml" />
        <!-- 	  <property name="transactionFactory"> -->
        <!-- 	    <bean class="org.apache.ibatis.transaction.managed.ManagedTransactionFactory" /> -->
        <!-- 	  </property> -->
    </bean>
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <constructor-arg ref="dataSource" />
    </bean>
<!--    <bean id="userMapper" class="org.mybatis.spring.mapper.MapperFactoryBean">-->
<!--        <property name="mapperInterface" value="com.ariulsoft.dxplm.dxplmmanagement.mapper.UserMapper" />-->
<!--        <property name="sqlSessionFactory" ref="sqlSessionFactory" />-->
<!--    </bean>-->
    <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
        <property name="driverClassName" value="com.microsoft.sqlserver.jdbc.SQLServerDriver"></property>
        <property name="url" value="jdbc:sqlserver://localhost:1433;databaseName=DXPLM"></property>
        <property name="username" value="유저"></property>
        <property name="password" value="패스워드"></property>
    </bean>
</beans>



9. /WEB-INF/dispatcher-servlet.xml 을 아래 내용으로 수정

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:p="http://www.springframework.org/schema/p" xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                           http://www.springframework.org/schema/beans/spring-beans.xsd
                           http://www.springframework.org/schema/context
                           http://www.springframework.org/schema/context/spring-context.xsd
                           http://www.springframework.org/schema/mvc
                           http://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!-- Annotation -->
    <mvc:annotation-driven></mvc:annotation-driven>

    <!-- Base package -->
    <context:component-scan base-package="com.ariulsoft.dxplm.dxplmmanagement.controller,com.ariulsoft.dxplm.dxplmmanagement.service"></context:component-scan>

    <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/"></property>
        <property name="suffix" value=".jsp"></property>
    </bean>

    <!--  <mvc:resources location="/app-assets/" mapping="/app-assets/**"></mvc:resources>-->
</beans>

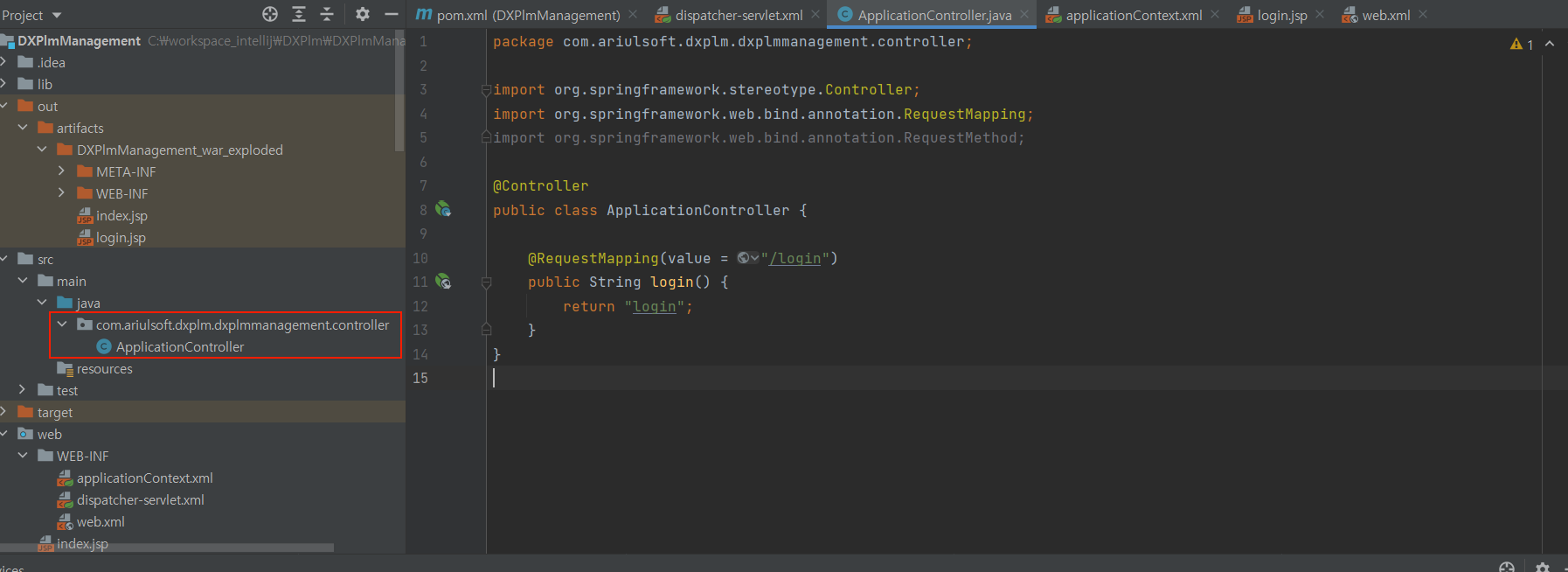

10. dispatcher-servlet.xml에서 설정한 base-package의 정보대로 패키지를 생성 후 파일을 생성한다.

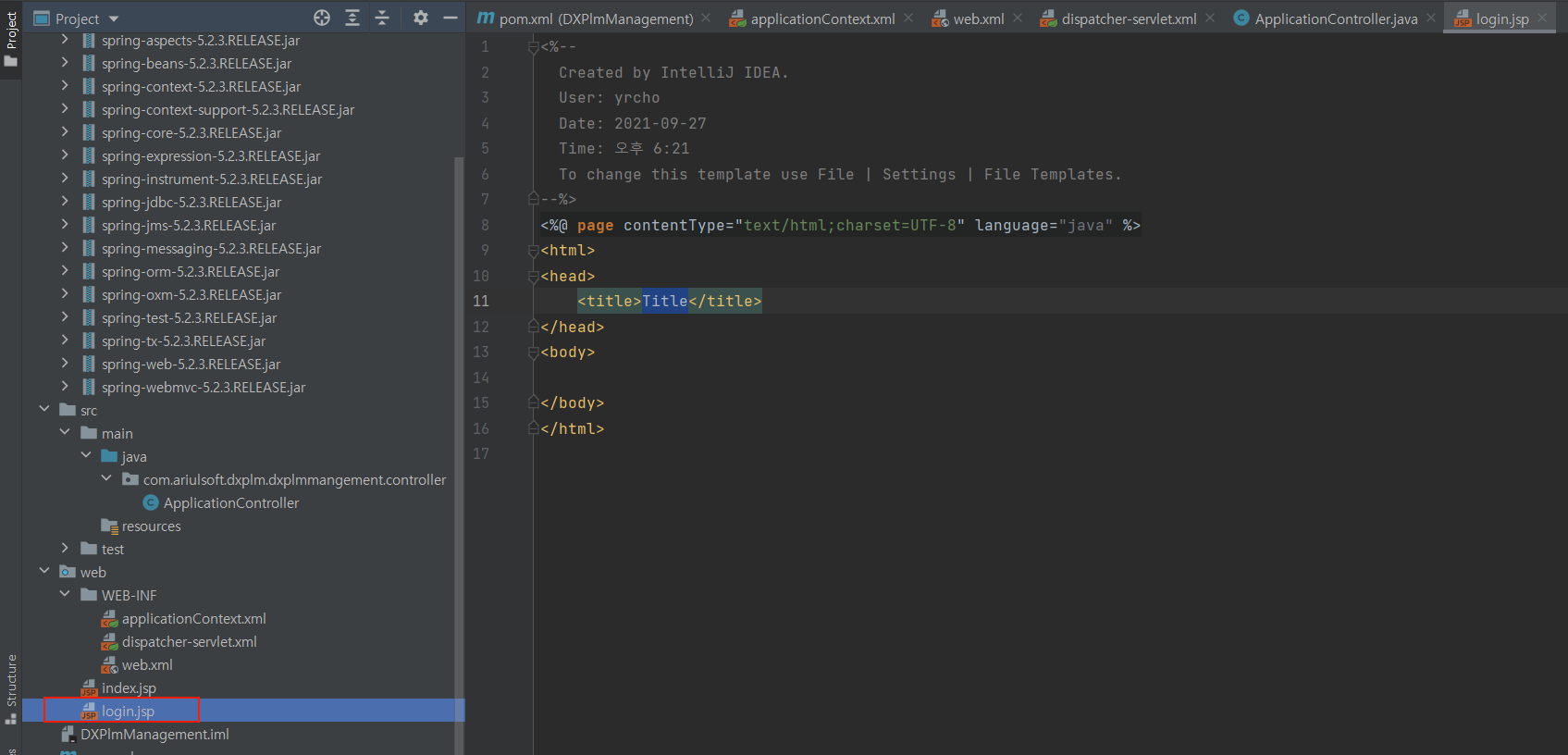

11. 테스트를 위해 login.jsp 파일을 생성한다


12. /WEB-INF/log4j2.xml 파일을 생성한다

<?xml version="1.0" encoding="UTF-8"?>
<Configuration status="info" monitorInterval="30">

    <Properties>
        <Property name="LOG_FORMAT">%d{yyyy-MM-dd HH:mm:ss} %p %m%n</Property>
        <Property name="BASE_DIR">c:/log/DXPlmManagement</Property>
    </Properties>

    <Appenders>
        <Console name="Console" target="SYSTEM_OUT" follow="true">
            <PatternLayout pattern="${LOG_FORMAT}"/>
        </Console>
        <RollingFile name="File"
                     fileName="${BASE_DIR}/DXPlmManagement.log"
                     filePattern="${BASE_DIR}/DXPlmManagement.%d{yyyyMMdd}.log">
            <PatternLayout pattern="${LOG_FORMAT}"/>
            <Policies>
                <TimeBasedTriggeringPolicy interval="1" modulate="true" />
            </Policies>
            <DefaultRolloverStrategy>
                <Delete basePath="${BASE_DIR}">
                    <IfFileName glob="*.log" />
                    <IfLastModified age="30d" />
                </Delete>
            </DefaultRolloverStrategy>
        </RollingFile>
    </Appenders>

    <Loggers>
        <Root level="info">
            <AppenderRef ref="Console"/>
            <AppenderRef ref="File" />
        </Root>
    </Loggers>
</Configuration>

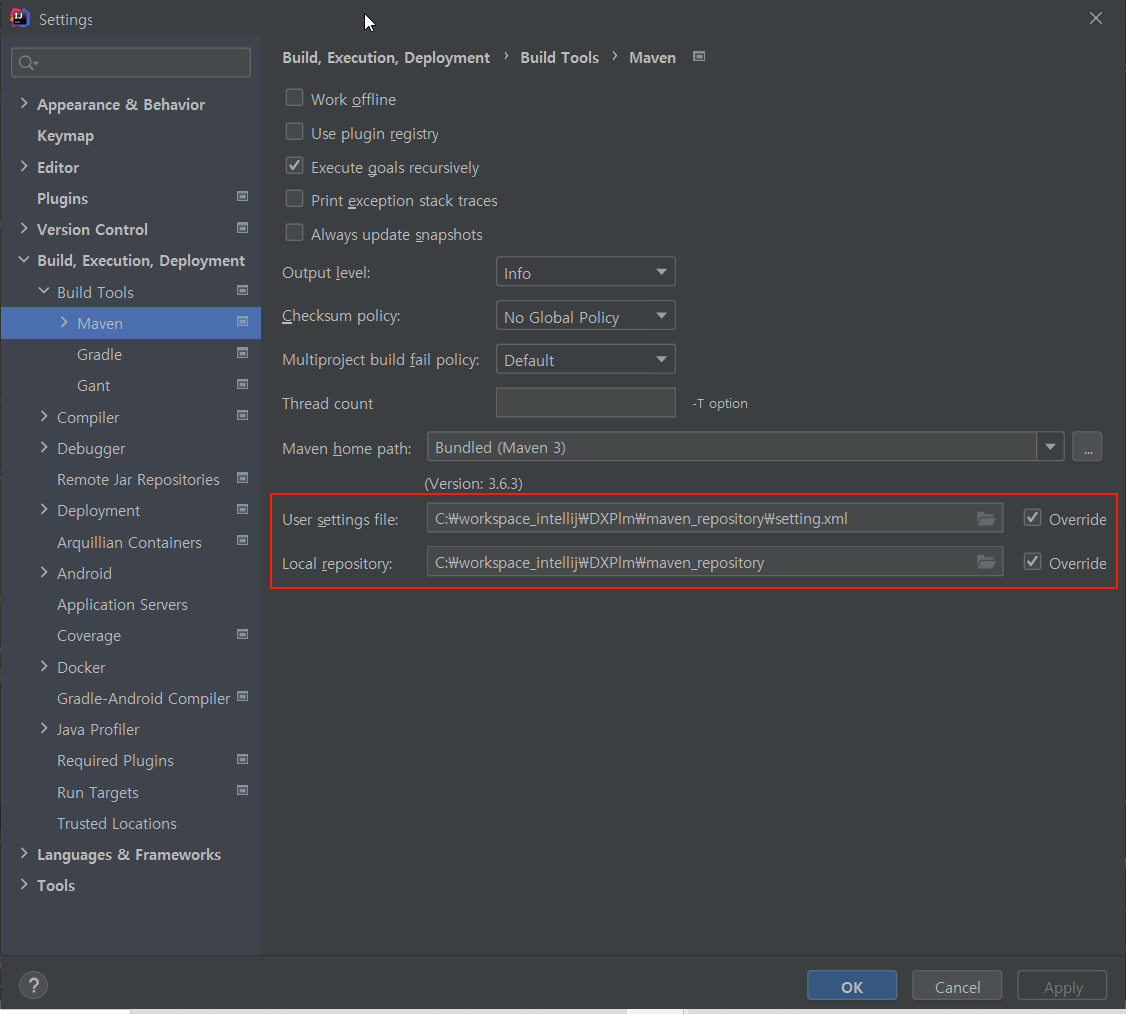

13. (선택) File - Setting - Maven 을 선택하여 Maven 환경을 설정한다

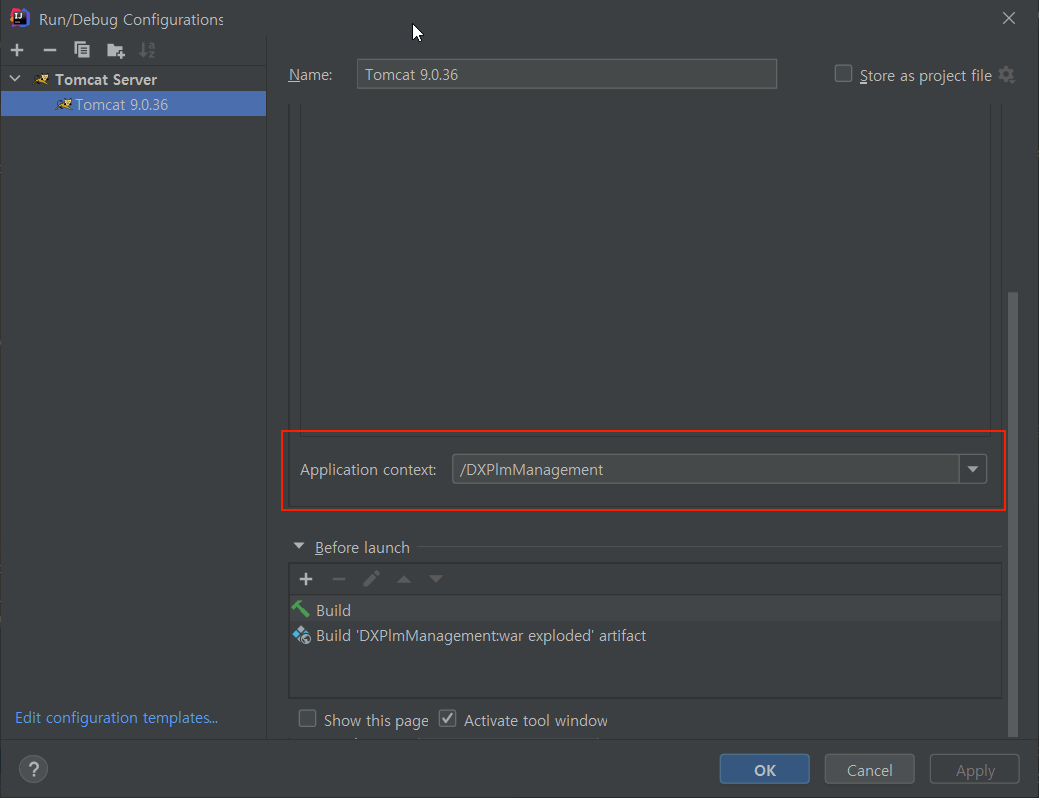

14. 톰캣을 설정한다. 주의해야 할 것은 Server - URL 에 맞추어 Configurations - Deployment 에서 Application context 를 수정하는 것을 잊지 말아야 한다. (Server -URL 만 변경후 왜 안되는지 1시간을 고민했음 ㅜㅜ)
